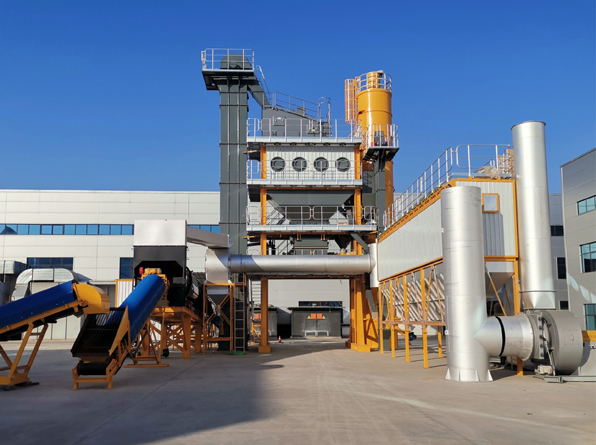

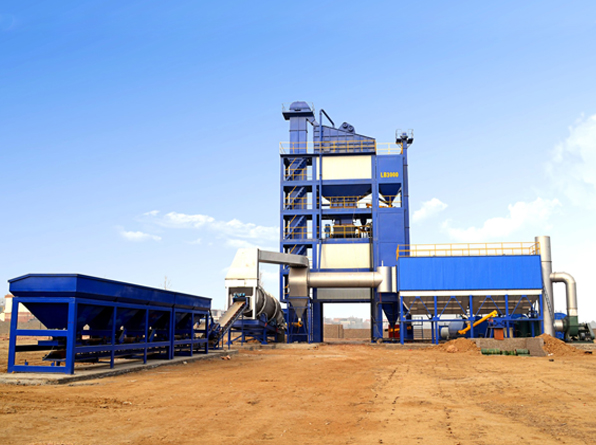

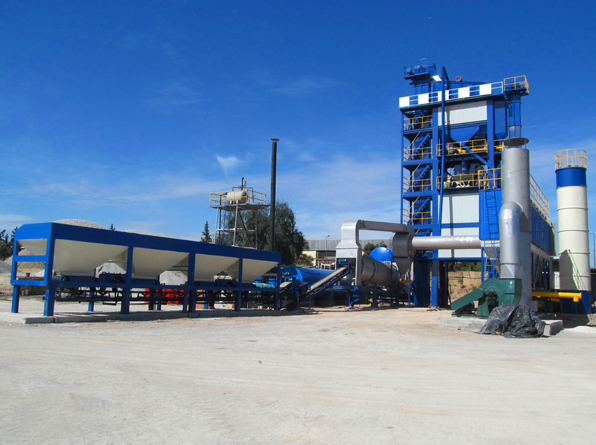

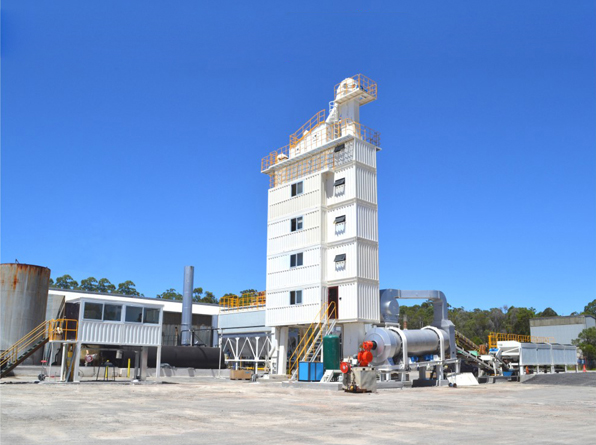

Asphalt Batch Mixing Plant LB Series

Description

The LB series asphalt batch mix plant is designed to produce asphalt mix (HMA, SMA, AC) for high-grade road surface pavement projects, featuring precise aggregate batching and accurate weighing, which ensure the quality of the finished products. It's ideal equipment for asphalt mix producers and road construction contractors.

Highlights:

01

Modular design makes it convenient for transportation and installation and suitable for worldwide use

02

Batch mixing, precise screening, and accurate measurement allow it to produce quality hot mix asphalt

03

Filler and additives such as dye pigment, fibers, and foam can be fed into the mixer to produce finished asphalt in different recipes and colors

04

Optimized drying drum with thermal insulation layer surface helps to achieve sufficient heating and less fuel consumption

05

The dual-shaft mixer enables fast and homogenous mixing, and the PLC system, with three control modes, is easy to operate

06

Two-stage dust collectors-primary cyclone dust filter and secondary bag house filter-constrain dust emission to less than 20 mg/Nm³

Parameter

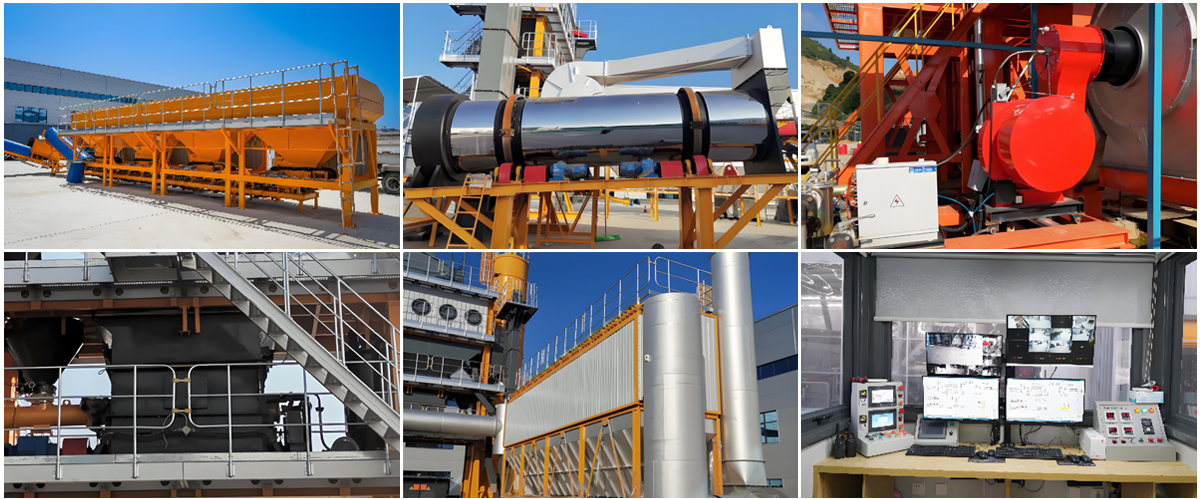

Main Components:

1. Cold Feeder

Equipped with a vibration motor and shortage alarm device to ensure continuous aggregate supply and a protective grille is installed to protect the feeder and prevent body injury.

2.Drying Drum

A central lubricating system is deployed for smooth running; drive devices have protective covers; optimized inner structure makes it safer, more efficient, and longer service life; its surface is covered by a thermal insulation layer, less heat loss.

3.Burner

Pulverized coal burner, oil burner, gas burner and oil-gas dual fuel burner are available options. All burners are Chinese or worldfamous brands, efficient and stable.

4. Mixing Tower

It typically consists of a vibrating screen, hot bin, weighing hopper, mixer, HMA storage bin, and loading layer; each of which is an individual module, convenient for transport and installation.

5.Mixer

Twin-shaft mixer, the two shafts synchronously rotate in different directions, ensuring uniform mixing; paddles on the shafts are made of wear-resistant material, sturdy and durable.

6.Dust Collecting System

Primary cyclone dust filter, coarse dust is reclaimed; Secondary bag house dust filter adopts NOMEX bags, fine dust is collected and reclaimed; Dust emission is less than 20 mg/Nm³.

7.PLC Control System

Equipped with the commercial computer; control mode can be switched between manual, auto, and semi-auto; multi-language interactive interface; remote technical support is available.

8.Bitumen Tank

Horizontal, vertical, direct heating and heat transfer oil heating bitumen tanks are available, as well as heat transfer oil furnaces and bitumen unloading tanks.
