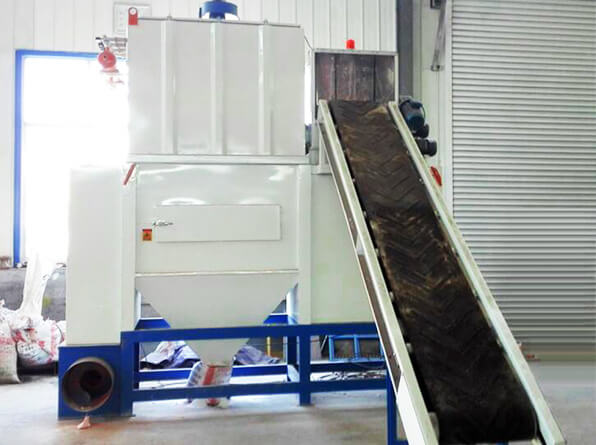

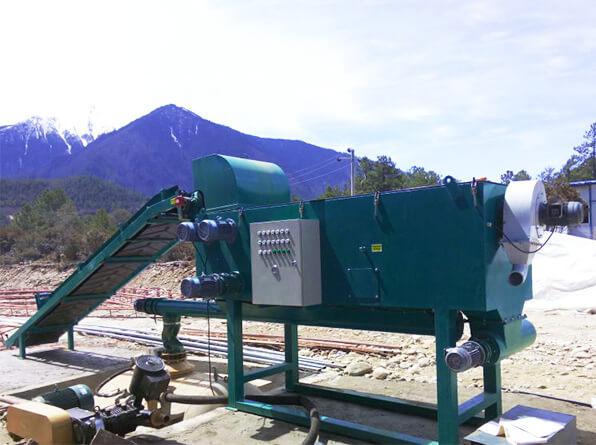

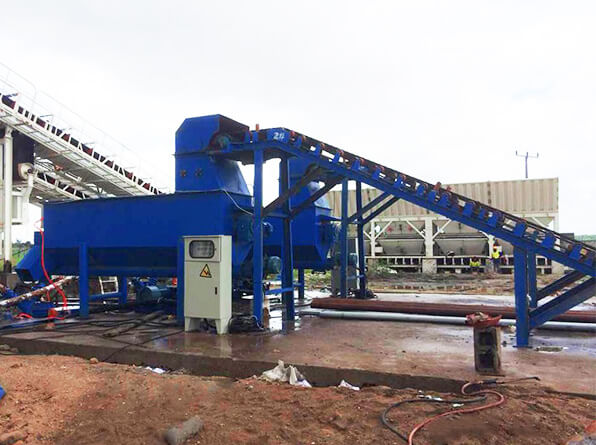

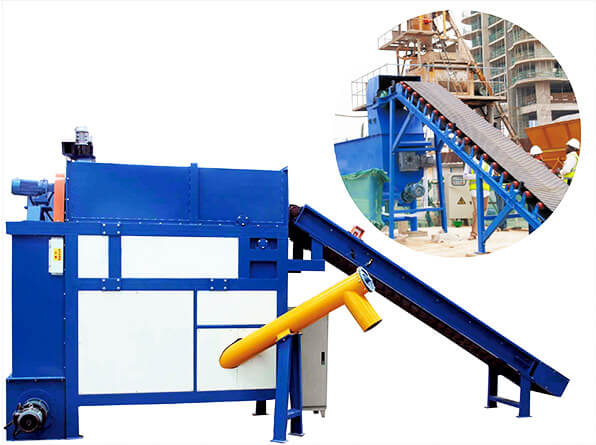

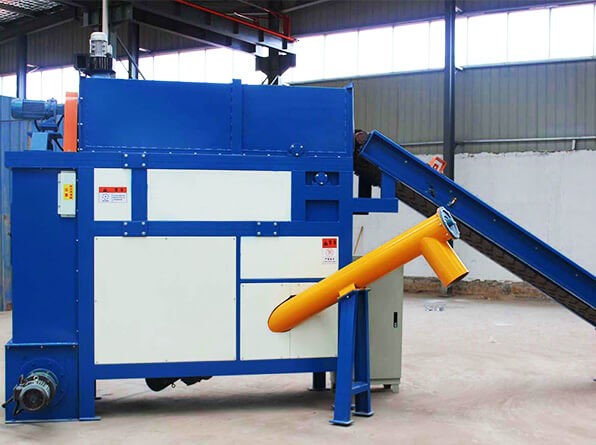

Cement Bag Breaker
Description
What do you use cement bale breaker for?
FOCUS cement bale breaker assembles the functions of conveying cement bags,breaking cement bags, separating cement and bags, discharging cement and bales. Widely used together with cement pneumatic feeder in areas where bulk cement truck carrier is not reachable, whereas bagged cement are much available, especially for concrete batching plant.
What are the main features of PBJ series cement bale breaker?
01
Muchly saved your manpower, great efficiency in supplying cement for concrete batching plant.
02
Used together with pneumatic cement charger and other cement storage equipment.
03
Environmentally friendly, simple operation, convenient maintenance, your concrete batching plants' ideal helper.
Parameter
Model | PBJ60 | PBJ80 | PBJ100 | unit |
Productivity | 15 | 25 | 35 | t/h |
Cement bag conveying speed | 1 | 1 | 1 | m/s |
Rolling boult speed | 26 | 28 | 32 | Rpm |
Cement screw conveyor dia. | 219 | 219 | 219 | Mm |
Breaking blade | 8 | 10 | 12 | Unit |
Weight | 3600 | 4000 | 4500 | Kg |
Power | 15 | 17 | 22 | Kw |
Dimension | 11600x1260x3000 | 12300x1400x3310 | 13600x1550x3510 | LxWxH(mm) |
-
