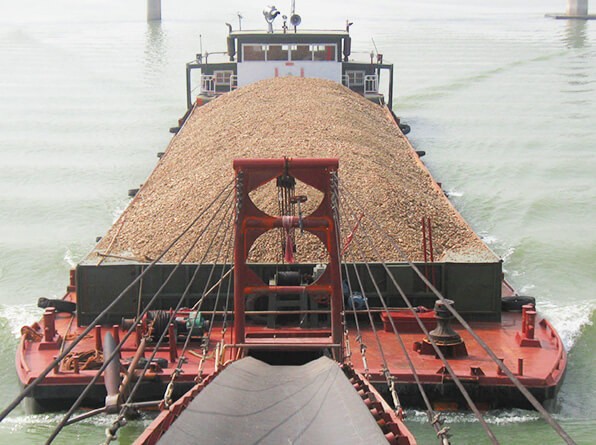

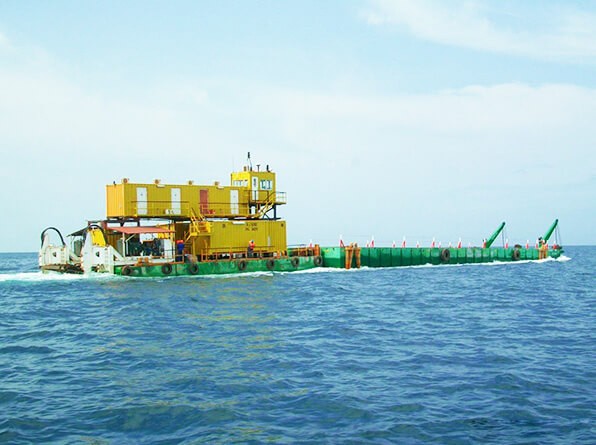

1500T Deck Barge
Total length: 61.3m
Total width: 15.0m
Moulded depth: 3.1m
Light load draft: 1.5m
Load draught: 2.5m
Rated capacity: 1500ton
No-load speed: 11Kts
Running speed loaded: 9Kts
Deck load: 6T/㎡
| Equipment name | Flat steel self-propelled barge | |||
| Equipment model | YS-1500 | |||
| Main dimensions | Total length | 61.3m | ||
| Total width | 15.0m | |||
| Moulded depth | 3.1m | |||
| Performance | Light load draft | 1.5m | ||
| Load draught | 2.5m | |||
| Rated capacity | 1500ton | |||
| No-load speed | 11Kts | |||
| Running speed loaded | 9Kts | |||
| Deck load | 6T/㎡ | |||
| Floating body materials | Length | 61.0m | Q235 steel C 0.14~0.22% Mn 0.30~0.65 Si≤0.30 S≤0.050 P≤0.045 | |
| Width | 14.8m | |||

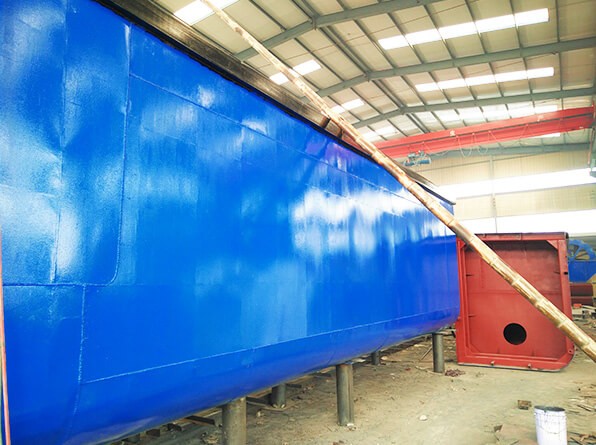

| Height | 3.1m | Anti-rust treatment, 2 layers of epoxy zinc-rich primer, 1 layer of curing agent, 1 layer of epoxy zinc-rich surface paint. | ||
| Material | Side plate | 8mm | ||
| Baseboard | 10mm | |||
| Deck | 12mm | |||
| Floating body connection | Field welded connection | |||
| Control room | Length | 3.0m | Wall color is white, control room top is white, material is steel, door window is aluminium alloy sliding door window. | |
| Width | 2.6m | |||
| Height | 2.0m | |||

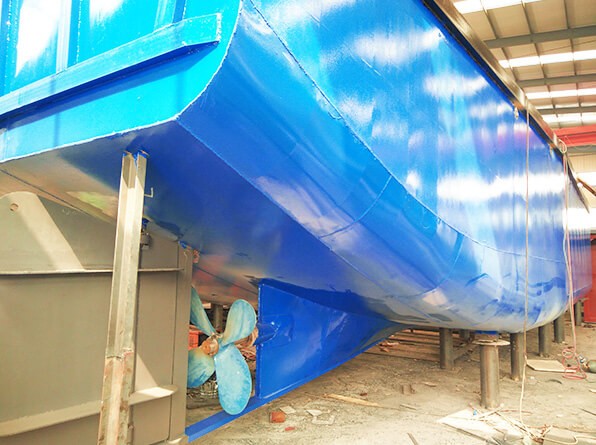

| Propeller(2 sets） | Type | SJ-1500 | ||
| Diameter of paddle | 1500mm | |||
| Matching gear box | HANGZHOU Gear400 | |||
| Matched Main Machine | TypeKTA19-M | CUMMINS | ||
| output power | 339kw | |||
| Speed | 1744r/min | |||
| Big anchor | Quantity | 3pcs | bower anchor 2pcs，stern anchor 1pcs | |
| Anchor winch 2sets | Reduction box | ZQ650 | electromagnetic brake， fore body 1set，stern 1 set | |
| Electromotor | 15kw | |||
| Marine signal light | Whole set | |||
| Marine positioning and communication systems | Ship radar | FURUNO M 1835 | 1set FURUNO | |
| High frequency intercom | EHF MAINE IC-M324 | 1set | ||
| Hand-held high frequency walkie-talkie | IC-M23 | 2sets | ||
| Generator set | 50kw | |||
| Fire extinguisher | Dry powder extinguisher | 5sets | ||
| Gross weight of equipment | About 410 ton | |||
| Equipped with total power | 710kw | |||
| Equipment oil consumption | Full speed | About 68 liters per hour | ||
| Delivery time | 80 working days after receiving 30% downpayment | |||
