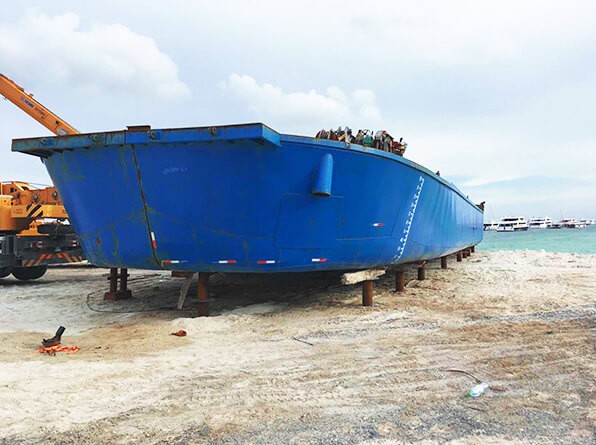

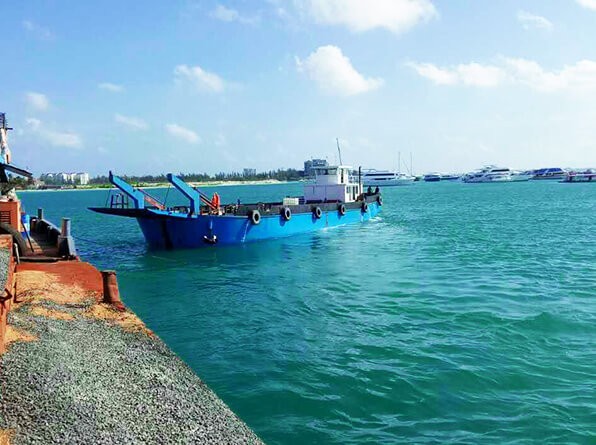

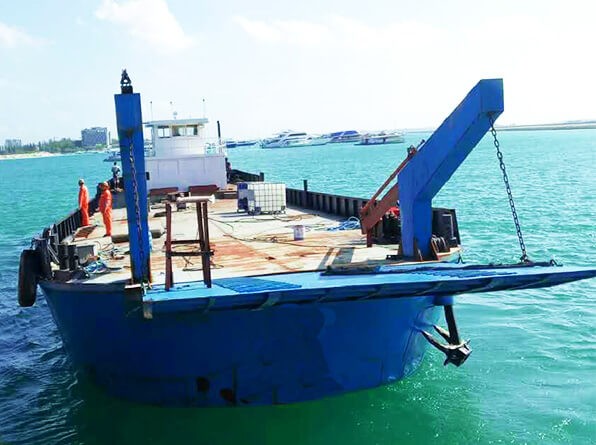

400T Deck Barge
Length: 35m
Width: 9.0m
Depth: 2.5m
Rib distance: 50cm
Side plate thickness: 8mm
Bottom plate thickness: 10mm
Deck thickness: 12mm
Plate material: CCSA Marine board
| Item | 400T Flat Deck Steel-structured Barge | Note | |
| Model | YS-400 | ||
| Dimensions and materials | Length | 35m | |
| Width | 9.0m | ||
| Depth | 2.5m | ||
| Rib distance | 50cm | ||
| Side plate thickness | 8mm | Spraying 4 layers of special marine epoxy zinc-rich paint | |
| Bottom plate thickness | 10mm | ||
| Deck thickness | 12mm | ||
| Plate material | CCSA Marine board | ||
| Performance | Non load draught | 0.8m | |
| Full load draught | 2.0m | ||
| Load | 400T | ||
| Deck load | 7t/㎡ | ||
| Total weight | About 150T | ||
